skelet2.mw

Maple-skelet for Sidefagssuplering

Jens Gravesen

nogle praktiske rutiner:

> a1:=[1,2,3,4,5]; a2:=[5,4,3,2,1];

a1 := [1, 2, 3, 4, 5]

a2 := [5, 4, 3, 2, 1]

Kan "sy" a1 og a2 sammen vha. "seq"-kommandoen:

> [seq( [ a1[i], a2[i] ], i=1..nops(a1))];

[[1, 5], [2, 4], [3, 3], [4, 2], [5, 1]]

Bernsteinpolynomierne:

> B:=(n,k,t)->binomial(n,k)*(1-t)^(n-k)*t^k;

B := proc (n, k, t) options operator, arrow; binomial(n, k)*(1-t)^(n-k)*t^k end proc

> seq(B(3,i,t),i=0..3);

(1-t)^3, 3*(1-t)^2*t, 3*(1-t)*t^2, t^3

De grundlæggende operatorer:

> R:=x->x[1..-2];

R := proc (x) options operator, arrow; x[1 .. -2] end proc

> L:=x->x[2..-1];

L := proc (x) options operator, arrow; x[2 .. -1] end proc

> Delta:=x->L(x)-R(x);

Delta := proc (x) options operator, arrow; L(x)-R(x) end proc

> C:=(x,t)->(1-t)*R(x)+t*L(x);

C := proc (x, t) options operator, arrow; (1-t)*R(x)+t*L(x) end proc

Nogle kontrolpolygoner:

> a:=[[0,0],[1,1],[0,1],[1,0]];

a := [[0, 0], [1, 1], [0, 1], [1, 0]]

> b:=[[0,0],[0,4],[4,4],[4,0]];

b := [[0, 0], [0, 4], [4, 4], [4, 0]]

> c:=[[0,0,0],[1,0,0],[1,1,0],[1,1,1],[0,1,1]];

c := [[0, 0, 0], [1, 0, 0], [1, 1, 0], [1, 1, 1], [0, 1, 1]]

Og de tilsvarende Bezier kurver:

> at:=expand(add(B(3,i,t)*a[i+1],i=0..3));

at := [4*t^3+3*t-6*t^2, -3*t^2+3*t]

> bt:=expand(add(B(3,i,t)*b[i+1],i=0..3));

bt := [-8*t^3+12*t^2, -12*t^2+12*t]

> ct:=expand(add(B(4,i,t)*c[i+1],i=0..4));

ct := [4*t^3-2*t^4-6*t^2+4*t, 3*t^4-8*t^3+6*t^2, -3*t^4+4*t^3]

>

Differentiationsoperatoren jvf. Sætning 1.9

> BezierDiff:=proc(x)

>  # skriv din rutine her

> end:

> BezierDiff(a);

[[3, 3], [-3, 0], [3, -3]]

> BezierDiff(b);

[[0, 12], [12, 0], [0, -12]]

> BezierDiff(c);

[[4, 0, 0], [0, 4, 0], [0, 0, 4], [-4, 0, 0]]

Gradsforøgelse jvf. Sætning 1.12

> DegRaise:=proc(x)

>

>  # skriv din rutine her

>

> end:

> DegRaise([0,2]);

[0, 1, 2]

> DegRaise([0,3,6]);

[0, 2, 4, 6]

> DegRaise(a);

[[0, 0], [3/4, 3/4], [1/2, 1], [1/4, 3/4], [1, 0]]

> DegRaise(b);

[[0, 0], [0, 3], [2, 4], [4, 3], [4, 0]]

Subdivision:

> subdiv:=proc(x,t)

>

>  # skriv din rutine her

>

> end:

> subdiv(a,1/2);

[[[0, 0], [1/2, 1/2], [1/2, 3/4], [1/2, 3/4]], [[1/2, 3/4], [1/2, 3/4], [1/2, 1/2], [1, 0]]]

> subdiv(b,1/2);

[[[0, 0], [0, 2], [1, 3], [2, 3]], [[2, 3], [3, 3], [4, 2], [4, 0]]]

> subdiv2:=proc(x,m)

>

>  # skriv din rutine her

>

> end:

> subdiv2(a,1);

[[0, 0], [.5, .5], [.50, .75], [.500, .750], [.50, .75], [.5, .5], [1, 0]]

> subdiv2(b,2);

[[0, 0], [0., 1.00], [.2500, 1.7500], [.625000, 2.250000], [1.00000, 2.75000], [1.5000, 3.0000], [2.000, 3.000], [2.5000, 3.0000], [3.00000, 2.75000], [3.375000, 2.250000], [3.7500, 1.7500], [4.00, 1....[[0, 0], [0., 1.00], [.2500, 1.7500], [.625000, 2.250000], [1.00000, 2.75000], [1.5000, 3.0000], [2.000, 3.000], [2.5000, 3.0000], [3.00000, 2.75000], [3.375000, 2.250000], [3.7500, 1.7500], [4.00, 1....[[0, 0], [0., 1.00], [.2500, 1.7500], [.625000, 2.250000], [1.00000, 2.75000], [1.5000, 3.0000], [2.000, 3.000], [2.5000, 3.0000], [3.00000, 2.75000], [3.375000, 2.250000], [3.7500, 1.7500], [4.00, 1....

>

>

>

>

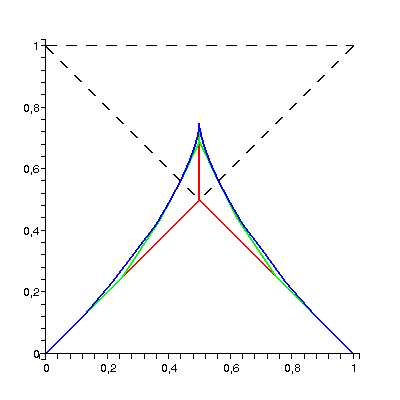

> ctr_a:=plots[pointplot](a,connect=true,thickness=2,linestyle=DASH):

> p1a:=plots[pointplot](subdiv2(a,1),connect=true,thickness=3,color=red):

> p2a:=plots[pointplot](subdiv2(a,2),connect=true,thickness=3,color=green):

> p3a:=plots[pointplot](subdiv2(a,3),connect=true,thickness=3,color=blue):

> plots[display]([ctr_a,p1a,p2a,p3a],scaling=constrained);

[Plot]

> atp:=plot([op(at),t=0..1],color=magenta):

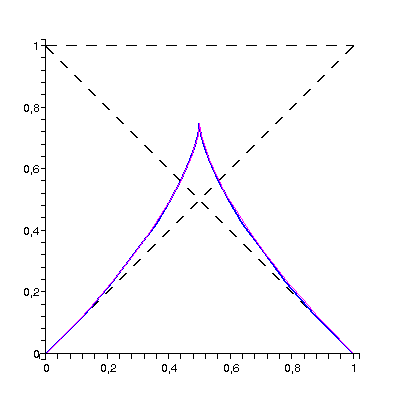

> plots[display]([ctr_a,p3a,atp],scaling=constrained);

[Plot]

>

> ctr_b:=plots[pointplot](b,connect=true,thickness=2,linestyle=DASH):

> p1b:=plots[pointplot](subdiv2(b,1),connect=true,thickness=3,color=red):

> p2b:=plots[pointplot](subdiv2(b,2),connect=true,thickness=3,color=green):

> p3b:=plots[pointplot](subdiv2(b,3),connect=true,thickness=3,color=blue):

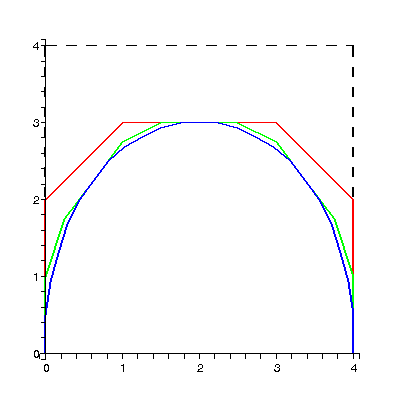

> plots[display]([ctr_b,p1b,p2b,p3b],scaling=constrained);

[Plot]

> btp:=plot([op(bt),t=0..1],color=magenta):

> plots[display]([ctr_b,p3b,btp],scaling=constrained);

[Plot]

> b2:=DegRaise(b);

b2 := [[0, 0], [0, 3], [2, 4], [4, 3], [4, 0]]

> p3b2:=plots[pointplot](subdiv2(b2,3),connect=true,thickness=3,color=magenta):

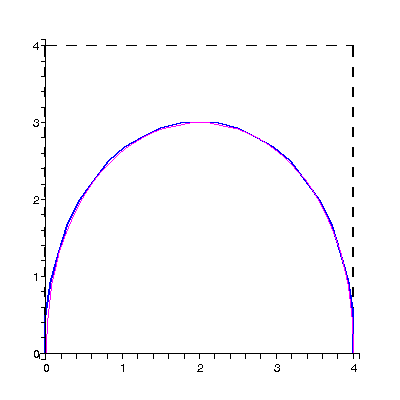

> plots[display]([p3b,p3b2],scaling=constrained);

[Plot]

>

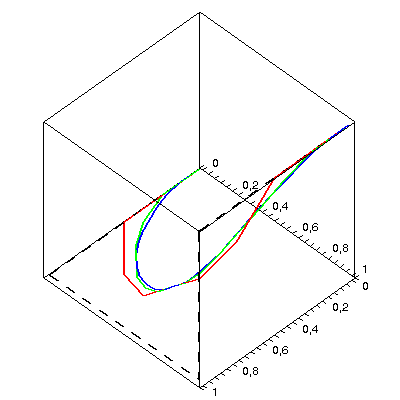

> ctr_c:=plots[pointplot3d](c,connect=true,thickness=2,linestyle=DASH,color=black):

> p1c:=plots[pointplot3d](subdiv2(c,1),connect=true,thickness=3,color=red):

> p2c:=plots[pointplot3d](subdiv2(c,2),connect=true,thickness=3,color=green):

> p3c:=plots[pointplot3d](subdiv2(c,3),connect=true,thickness=3,color=blue):

> plots[display]([ctr_c,p1c,p2c,p3c],scaling=constrained,axes=boxed);

[Plot]

> ctp:=plots[spacecurve]([op(ct),t=0..1],color=magenta):

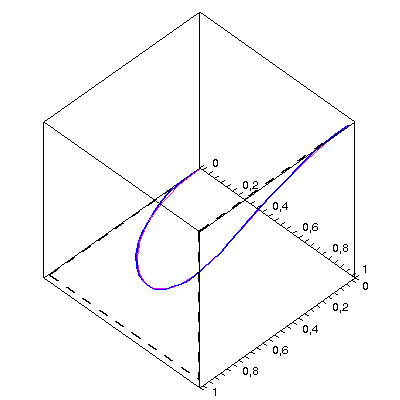

> plots[display]([ctr_c,p3c,ctp],scaling=constrained,axes=boxed);

[Plot]

Nogle hjælpefunktioner:

skalar-produktet:

> dot:=proc(x,y)

>  local k;

>  return add(x[k]*y[k], k=1..nops(x));

> end;

dot := proc (x, y) local k; return add(x[k]*y[k], k = (1 .. nops(x))) end proc

> dot([1,2],[3,2]);

7

længde af en vektor:

> vectorlength:=x->sqrt(dot(x,x));

vectorlength := proc (x) options operator, arrow; sqrt(dot(x, x)) end proc

> vectorlength([3,4]);

5

> vectorlength([1,2,2]);

3

længde af vektorer i en liste kan fås ved brug af "map" kommandoen:

> map(vectorlength, [ [1,1], [3,4], [1,2] ]);

[2^(1/2), 5, 5^(1/2)]

kryds-produktet:

> cross := (x,y)-> convert(linalg[crossprod](x,y), list);

cross := proc (x, y) options operator, arrow; convert(linalg[crossprod](x, y), list) end proc

> cross([1,0,0],[0,1,0]);

[0, 0, 1]

Funktion til udregning af polygon længde:

> polylength:=proc(x)

>  local k, l, s;

>

>  s:=Delta(x);

>  s:=map(vectorlength, s);

>  return [0,seq(add(s[l], l=1..k), k=1..nops(s))];

> end:

> polylength(a);

[0, 2^(1/2), 1+2^(1/2), 1+2*2^(1/2)]

> polylength(b);

[0, 4, 8, 12]

Funktion til udregning af buelængde af Bezier kurve

 subdivider m gange og brug polylength

> BezierArcLength:=proc(x,m)

>

>  # skriv din rutine her

>

> end:

Funktion til udregning af krumning jvf. Sætning 2.14

> curvature:=proc(r1,r2) # r1 er 1. afledede og r2 er 2. afledede

>

>  # skriv din rutine her

>

> end:

> curvature([1,0],[1,1]);

1

> curvature([2,0],[4,4]);

1

> curvature([2,2,0],[1,1,1]);

1/8

Funktion til udregning af krumning langs Bezier kurve

 differentier, gradsforøg, subdiv og brug "curvature"

> BezierCurvature:=proc(x,m)

>

>  # skriv din rutine her

>

> end:

>

> BezierArcLength(a,0),BezierCurvature(a,0);
BezierArcLength(a,1),BezierCurvature(a,1);

[0, 2^(1/2), 1+2^(1/2), 1+2*2^(1/2)], [1/6*2^(1/2), 5/2*2^(1/2), 5/2*2^(1/2), 1/6*2^(1/2)]

[0, .7071067812, .9571067812, .9571067812, .9571067812, 1.207106781, 1.914213562], [1/6*2^(1/2), .8944271910, 4.000000000, Float(undefined), 4.000000000, .8944271910, 1/6*2^(1/2)][0, .7071067812, .9571067812, .9571067812, .9571067812, 1.207106781, 1.914213562], [1/6*2^(1/2), .8944271910, 4.000000000, Float(undefined), 4.000000000, .8944271910, 1/6*2^(1/2)]

>

Funktion til fremstilling af krumningsplot

> BezierCurvaturePlot:=proc(x,m,farve)

>  local s, k, sk, i;

>

>  s:=BezierArcLength(x,m);

>  k:=BezierCurvature(x,m);

>  sk:=[seq([s[i],k[i]], i=1..nops(s))];

>  plots[pointplot](sk,connect=true,thickness=3,color=farve):

> end:

>

>

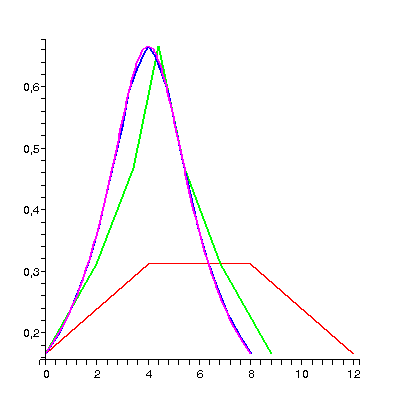

> kb0:=BezierCurvaturePlot(b,0,red):

> kb1:=BezierCurvaturePlot(b,1,green):

> kb3:=BezierCurvaturePlot(b,3,blue):

> kb5:=BezierCurvaturePlot(b,5,magenta):

> plots[display]([kb0,kb1,kb3,kb5]);

[Plot]

> dbt:=diff(bt,t);

> d2bt:=diff(dbt,t);

dbt := [-24*t^2+24*t, -24*t+12]

d2bt := [-48*t+24, -24]

> dsdt:=sqrt(dbt[1]^2+dbt[2]^2);

dsdt := 12*((1-2*t+2*t^2)^2)^(1/2)

> s:=subs(u=t,int(dsdt,t=0..u));

s := 4*csgn(1-2*t+2*t^2)*t*(3-3*t+2*t^2)

> kappa:=simplify((dbt[1]*d2bt[2]-dbt[2]*d2bt[1])/dsdt^3);

kappa := -1/6*csgn(1-2*t+2*t^2)/(1-2*t+2*t^2)^2

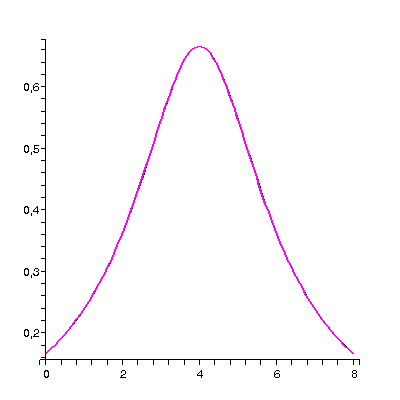

> kbt:=plot([s,-kappa,t=0..1],color=black):

> plots[display]([kbt,kb5]);

[Plot]

>

> ka0:=BezierCurvaturePlot(a,0,red):

> ka1:=BezierCurvaturePlot(a,1,green):

> ka3:=BezierCurvaturePlot(a,3,blue):

> ka5:=BezierCurvaturePlot(a,5,magenta):

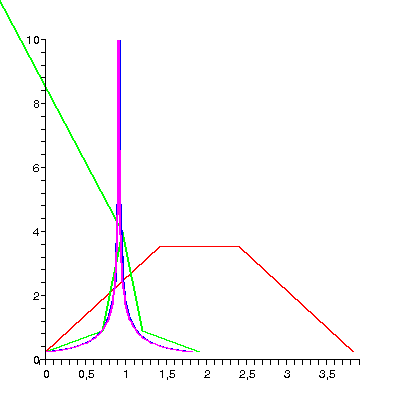

krumningen er uendelig for t=1/2 så for at se noget begrænser vi y-aksen til 100.

> plots[display]([ka0,ka1,ka3,ka5],view=0..10);

[Plot]

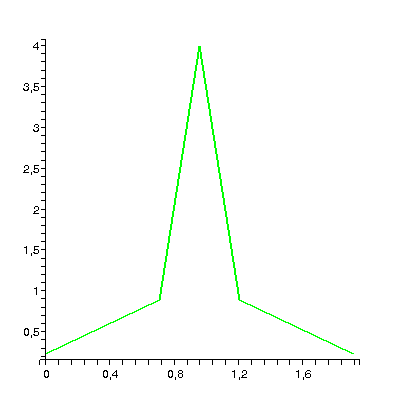

En Maple plotte fejl?

> plots[display](ka1);

[Plot]

>

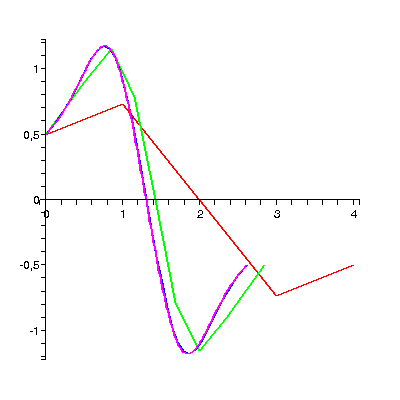

> kc0:=BezierCurvaturePlot(c,0,red):

> kc1:=BezierCurvaturePlot(c,1,green):

> kc3:=BezierCurvaturePlot(c,3,blue):

> kc5:=BezierCurvaturePlot(c,5,magenta):

> plots[display]([kc0,kc1,kc3,kc5]);

[Plot]

>

Funktion til udregning af torsion jvf. Sætning 2.28

> torsion:=proc(r1,r2,r3) # r1, r2, r3 er de 3 første afledede

>

>  # skriv din rutine her

>

> end:

> torsion([1,0,0],[0,1,0],[0,0,1]);

1

> torsion([1,1,0],[0,2,0],[1,0,3]);

3/2

>

Funktion til udregning af torsion langs Bezier kurve

 differentier, gradsforøg, subdiv og brug "torsion"

> BezierTorsion:=proc(x,m)

>

>  # skriv din rutine her

>

> end:

>

Funktion til fremstilling af torsionsplot

> BezierTorsionPlot:=proc(x,m,farve)

>  local s, t, st, i;

>

>  s:=BezierArcLength(x,m);

>  t:=BezierTorsion(x,m);

>  st:=[seq([s[i],t[i]], i=1..nops(s))];

>  plots[pointplot](st,connect=true,thickness=3,color=farve):

> end:

>

> t0:=BezierTorsionPlot(c,0,red):

> t1:=BezierTorsionPlot(c,1,green):

> t3:=BezierTorsionPlot(c,3,blue):

> t5:=BezierTorsionPlot(c,5,magenta):

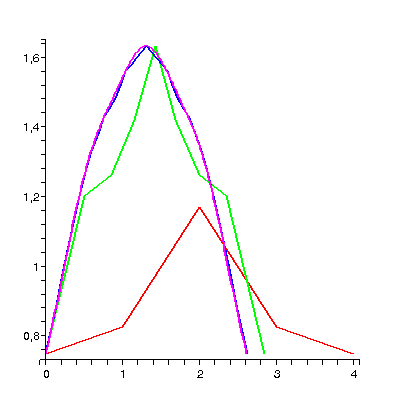

> plots[display]([t0,t1,t3,t5]);

[Plot]

>
